Home / Door Closers / Cam Action Door Closer / AR7383 CONCEALED DOOR CLOSER

Products
  • C2156 Wire Pull with 16mm Circular Rose £1
  • C0362 T Bar Pull with 16mm Circular Rose £1
  • C0337 Metro Cabinet Pull Handle £1
  • C0339 Square Metro Cabinet Pull Handle £1
  • C3681 Slim Metro Cabinet Pull Handle £1
Zoom

AR7383 CONCEALED DOOR CLOSER

Details :

ARRONE® overhead door closing device:

  • Power adjustable power size 2-4 by spring
  • High performance concealed cam action mechanism with slide track
  • Suitable for doors up to 1100mm wide and 80kg weight
  • Intumescent kit available
  • Successfully type tested for conformity to all the requirements of BS EN1154:1997
  • Included in a successful fire test to BS EN1634 Part 1. Assessed for use on 30, 60, 90 and 120 minutes timber fire doors and 240 minutes on steel fire doors.
  • CE Marked: Certificate 1121-CPD-AD5071
  • Certifire Approved Product: Certificate CF5181
  • CPR Declaration of Performance Certificate: HUK0026
  • The AR7383 can satisfy the opening force recommendations of BS8300 and AD-M when fitted to a door with minimum width of 777mm (standard mount) and 796mm (transom mount) according to third party data. However other installed hardware, door seals and differential air pressure will affect the products as fitted performance meaning that the door closer alone cannot allow compliance to BS8300 and AD-M.
Add To Wishlist
View Wishlist
Share
Categories: Cam Action Door Closer, Concealed Door Closers, Door Closers
  • Description
  • Brand
  • Downloads
Brand ARRONE

Technical Data:

Fire Cert

Declaration of Performance Floor Mount

Declaration of Performance Frame Mount



Specifications:

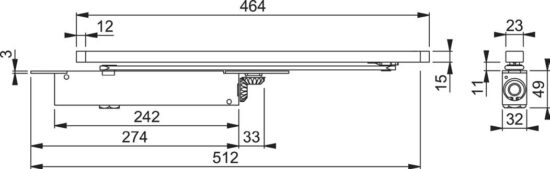

AR7383 Drawing

Brand

ARRONE

  • Datasheet-AR7383.pdf

Login/Register to download file
